Monday 17 November 2014

Insulation of rear doors

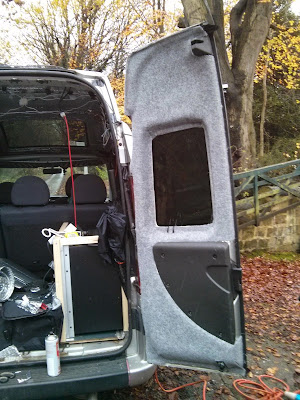

For staying in the car while it is not moving, it is essential to put in a good insulation everywhere. I had begun to put alu-air-bubble foil on the inside of the ceiling, and I did purchase a 5x10m roll of VelTrim (silver). Now I wanted to try out the VelTrim. The first object of my lining attempts were the read doors. First I put a layer of the alu bubble foil, to create an insulating layer. Then on top of that, I affixed a layer of VelTrim. It is a thick material, 500g per square meter, and is not easy to mold. So I had to resort to cutting and stitching around those edges of the doors and the rear windows.



The right door closes now a bit harder, needs to be pushed with force during the closing; the added padding appears to add some resistance somewhere where it bulges up too thickly for a smooth closing.

Wednesday 12 November 2014

Fridge repair - by WRS Refrigeration Services Leeds

Already on Saturday afternoon I did call around to fridge services which I found through a web search. There was one guy who was listed as fixing fridges in Leeds, but who was actually in York. There also was a nationwide service with a local office, but they were closed.

So on Monday morning I searched for more and found some repair services. One would only do large commercial refrigeration systems, another could only do this next week. I did leave a message for another service engineer, but he never called back. I also left an email for that nation-wide service. Their phone number only went to a call centre, and my call was somewhere in a queue, so I gave up on that.

Then I found WRS Refrigeration Services. David was on the phone, and he competently described what would need to be done. So I arranged for a repair for Wednesday morning. He would come with his van and equipment and would repair the fridge right there.

He and his colleague came then today in the morning. The weather was miserable, it was raining, and I had just installed the electric 240V connector so that I could have electricity in the camper, to power an electric space heater, and to be able to connect equipment for the repair.


Basically what needed to be done was: repair the broken pipe, install a service valve / port, evacuate the system, and then refill it with the coolant R134a. In order to do this, they actually had to cut the steel pipe of that condensor grid which enclosed the whole compressor unit, to get better access to the other pipes. The team of two removed two of the original pipe connections from the compressor by using a solder gun. I was a bit worried to have that naked hot flame from the torch in the car with its flammable seats and plastic moldings, but David was careful in using that torch. The connections were newly soldered, and a more smoothly bent piece of copper pipe was used instead of that original damaged part. The new service port now allows refilling the system, in case it would leak.

The whole work took 1 1/2 hours. I was very impressed with their work, and I was so glad to see the refrigerator working again after they completed all the soldering and refilling. There is a 12 month warranty on this repair, but it looks like all the pipes are tightly sealed, and this fridge will now be working fine from now on.

I am very grateful for the professional work that WRS Refrigeration Services have done with that repair, and I can wholeheartedly recommend them for any similar repair, if such one is needed!



Saturday 8 November 2014

The fridge is broken!

For a while the refrigerator was standing in the rear of the vehicle, kept in place by bungee cords in order to avoid it falling over when driving. I had removed the compressor unit from the rear, which is one of the specific features of this Waeco CRP-40 refrigerator. It sat there stable, with the compressor / evaporator cage sitting next to it and attached to the vehicle wall so it would not move.

I already noticed that very little provision has been made by the manufacturers for a SAFE removal of that compressor. The compressor unit is mounted on a metal structure which is hinged into the back of the fridge and can be unmounted, so that this unit can be mounted up to 1.5 m away from the actual refrigerator box. This is very useful in situations where there is very little space, as in my micro camper, for example. That was the main reason for choosing this refrigerator.

But removing this unit was more difficult than I had thought. Some of the screws which needed to be unlocked were very difficult to access. And the main connecting pipe that connects the coolant to the fridge was dangling in the back without any stress relief support from the compressor. The pipe (aluminum) just was spirally wound up and could be bent so that the compressor unit could be mounted away form the fridge. But the full stress of any motion action was transferred to the copper part of the pipe directly at the compressor, and that pipe was already strangely bent, apparently during the manufacturing process.

So when I proceeded to put the compressor in its final place in the car and wanted to affix the refrigerator more permanently, I suddenly heard a hissing sound, and I saw that the copper pipe at the compressor had a hole in that section of pipe which was bent very strangely already from the very beginning. So here it was, a brand-new fridge, just 2 weeks old, and already broken now, not usable. I was quite pissed...


In the picture one can see the pent pipe. This was NOT my doing, the pipe had been squeezed and bent before I removed the compressor unit from the fridge. I should have taken pictures right when I installed the fridge to proof that and possible get a warranty repair. Apparently, the stress from moving that unit away from the fridge, with the tension and stress directly being transferred to the pipe, was too overwhelming for that weak spot.

I hereby need to warn all those who buy this refrigerator and are considering removing that compressor unit: take pictures before you do this, and document the state of the compressor pipes. Also, try to build some kind of mechanical stress relief, with some wood structural enforcement, to keep the pipe at this compressor cage in place and to make sure that it does not move in the vicinity of the compressor unit, when the whole unit is moved. I should have done that right away, but did not...

After the damage was done I continued to work on the mechanical structure for tightly putting refrigerator and compressor unit in place. I built a small shelf for the compressor, attached the flush mounting frame to the refrigerator, and built a structure with wooden beams to be fixed to the vehicle. First I thought of building a whole cabinet from bottom to top, hence I placed a vertical pillar in the rear. But then I decided that this would take away valuable space, as I thought of using the vertical space more for a bed that could sit on top of the whole fridge / electronics structure. So I cut that beam and added a more rigid horizontal structure. I was even able to use one of the panel mounting holes in the side of the vehicle where the original cover panel had been mounted. This allowed to rigidly attach one of the beams to the vehicle. In the pictures below one can see the little shelf for the compressor unit, which is attached to the panel covering the rear right seat belt, and which is also supported by a vertical beam. The compressor cage is held in place by those rigid slide-in mountings that were also in the back of the fridge. It stands on rubber feet on that shelf. I may bind it also down with some straps to ensure it does not move when I go over potholes and bumps in the road.
